Excel File to IO Map Converter

Caleb Robinson

July 2023

Introduction

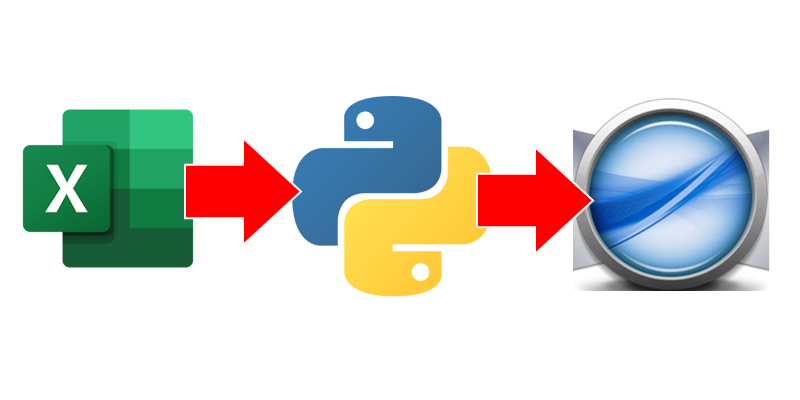

Over the summer I got the opportunity to intern at a company called Verus. The project that I worked on was an I/O map for a gas compression and storage facility. Normally this would be boring and tedious work, but Verus wanted me to do it with style. My task was to make a python program that took in their excel file that has all the data that would be needed in an I/O map and convert it to a .L5X file that Studio5000 could read. This would automatically format the I/O map, and any changes that needed to be made could be done with the run of a program, without having to manually change things. The .L5X file type is like and XML file that can be imported to Studio5000.

Technologies Used

• Studio5000
• Python
• XML
• Excel

Results

The summer internship was a success, and the file my python code wrote is out there in the real world, helping a gas compression and storage facility run.
